Baoji Fairy Titanium Industry Co., Ltd. is one of the leading manufacturers and suppliers of titanium foil roll in China. Welcome to wholesale bulk high quality customized products made in China here from our factory. Good service and low price are available.
Products Introduction
1. Titanium Foil Roll is mainly used for the tweeter film of speakers, which has high fidelity and the sound is clear and bright.
2. Product information
| Grade: | GR1 GR7 GR11 GR12 |
| thickness： | ≤0.1mm |
| width： | ≤600mm |
| length： | can be customed |
| single coil weight： | 0~100kg |
| US standards: | ASTM B265 |
Titanium foil roll can also be used for precision accessories, implants on bones, etc.
Detail Shows
Ti foil

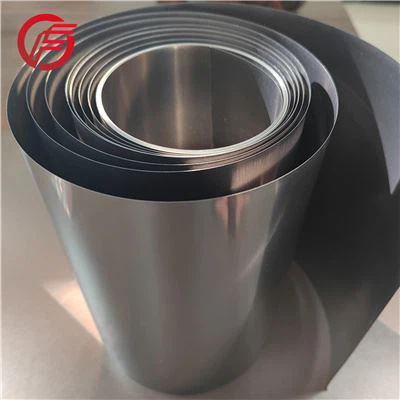

Titanium foil price
3. Titanium foil is mainly used for the tweeter film of speakers and the magnetic heads of tape recorders, video recorders, and password card players. The speaker diaphragm made of pure titanium foil reduces the creep of the speaker, and the high droop response characteristics of the diaphragm under the normal state of magnetic bass have been greatly improved.
0.01 titanium foil
0.01 titanium foil roll
4. The width of the titanium foil is cut according to the user's requirements. The length of the roll body determines the width of the rolled titanium foil. The wider and thinner the rolling, the more difficult it is to roll.
5. Titanium foil stock specifications:
| Grade | spec(mm) | wide(mm) | Standards |
| Gr1 | 0.01 | 100 | ASTMB265 |
| Gr1 | 0.02 | 140 | ASTMB265 |
| Gr1 | 0.03 | 100 | ASTMB265 |
| Gr1 | 0.04 | 327 | ASTMB265 |
| Gr1 | 0.05 | 320 | ASTMB265 |
| Gr1 | 0.1 | 110 | ASTMB265 |
| Gr1 | 0.2 | 200 | ASTMB265 |
| Gr1 | 0.3 | 240 | ASTMB265 |
| Gr1 | 0.4 | 260 | ASTMB265 |
| Gr1 | 0.5 | 520/750 | ASTMB265 |
| Gr1 | 0.6 | 600 | ASTMB265 |
| Gr1 | 0.7 | 600 | ASTMB265 |
