Baoji Fairy Titanium Industry Co., Ltd. is one of the leading manufacturers and suppliers of ansi/asme b16.5 grade2 weld neck titanium flange in China. Welcome to wholesale bulk high quality customized products made in China here from our factory. Good service and low price are available.
1. Products Introduction
A titanium flange is a component made of the non-ferrous metal titanium or a titanium alloy that attaches to the pipe end and links the pipe to the pipe.
2. Basic Information
Titanium Gr. 2 socket weld flange, ANSI b16.47 DIN 3.7035 butt weld flange, ASTM b381 titanium blind flange, ANSI b16.48 titanium weld neck RF flange.
UNS N56400 Titanium pipe flange standard specification
| Specifications | ASTM B381 / ASME SB381 |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1 / 2” to 18" |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
ANSI: 150, 300, 600, 900, 1500, and 2500 class
DIN: PN6, PN10, PN16, PN25, and PN40 class
JIS: 5K, 10K, 16K, 20K, and 30K class
Detail Shows
Titanium Gr2 Pipe Flanges
ASME SB381 Titanium lap joint flange
3. Classification of titanium flange
The following categories of titanium flange are defined by the petrochemical (SH) industry standard: threaded flange (PT), butt welding flange (WN), flat welding flange (SO), socket welding flange (SW), loose flange (LJ), and flange cover (not shown).
The integral flange, butt welding flange, plate flat welding flange, butt welding ring plate, loose flange, and flange cover are the different categories, according to machinery (JB) industry requirements.
It can be divided into several types depending on the connection method, including plate flat welding flanges, neck flat welding flanges, neck butt welding flanges, socket welding flanges, threaded flanges, butt-welding neck flanges, flange covers, flat welding loose flanges, ring groove face flanges, large-diameter flat flanges, large diameter high neck flanges, etc.
Titanium SO flange

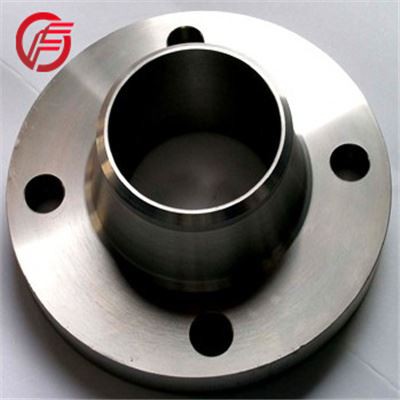

WN titanium flange
4. What are the applications of titanium flanges?
Titanium flange is frequently used in fundamental projects like the chemical industry, construction, water supply, drainage, petroleum, light, and heavy industry, refrigeration, and sanitation because of its good all-around performance, plumbing, fire fighting, electric power, aerospace, shipbuilding, etc.
Petrochemical and chemical industries: Titanium flanges are used in pipelines and equipment that handle corrosive chemicals, high-temperature fluids, and gases. They provide excellent resistance to corrosion and withstand high temperatures, making them ideal for these applications.
Aerospace and defense: The low weight and high strength of titanium flanges make them suitable for aircraft and aerospace applications. They are used in airplane structures and engine components, ensuring both lightweight and durability.
Marine industry: In ships, submarines, and offshore equipment, titanium flanges are used to prevent seawater corrosion and withstand harsh environments.
Power generation and nuclear industries: Titanium flanges are used in power plants and nuclear facilities for their excellent corrosion resistance, radiation resistance, and ability to withstand high temperatures.
Pharmaceutical and biotech industries: Titanium flanges are used in equipment for processing and storing pharmaceutical products and laboratory equipment due to their resistance to corrosion and contamination.
Food and beverage industries: Titanium flanges are suitable for food processing equipment and storage tanks because they resist corrosion and do not react with food products.
Piping systems: Titanium flanges are used in various types of piping systems, such as heat exchangers, steam lines, gas and oil transmission lines, and chemical processing lines.
