We often encounter some problems in calculating the weight of titanium material in our work. Here are some methods to calculate the weight of titanium alloy materials such as titanium plate, bar, and wire.
1. Formula for calculating the weight of titanium plate/square bar
Formula: Length (mm) × Width (mm) × Thickness (mm) × 4.51/1000,000
Example: Titanium plate 2mm × (thick) 1000mm (wide) × 2000mm (long)
Calculation:2 × 1000 × 2000 × 4.51/1000,000=18.04kg
Pure Titanium Plate, Titanium Plate, Block, Titanium Alloy Plate

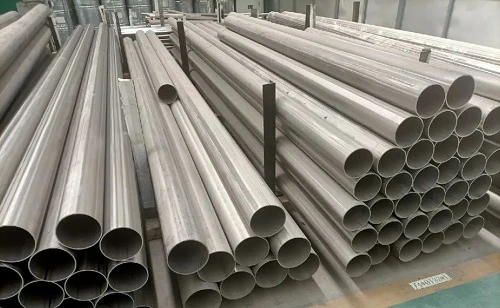

2. Formula for calculating the weight of titanium round pipe
Formula: (Outer Diameter - Wall Thickness) × Wall Thickness mm × 3.14 × 4.51 × Length mm/1000,000
Example: Titanium pipe 25.4mm (outer diameter) × 1mm (wall thickness) × 2000mm (length)
Calculation: (25.4-1) × 1 × 3.14 × 4.51 × 2000/1000,000=0.69kg
3. Formula for calculating the weight of titanium bar/wire/disc/ingot
General calculation formula: diameter mm × Diameter (mm) × three point one four × four point five one × Length (mm / 4000000)
Example: titanium rod Φ 20mm (diameter) × 6000mm (length)
General calculation: 20 × twenty × three point one four × four point five one × 6000/4000,000=8.5kg

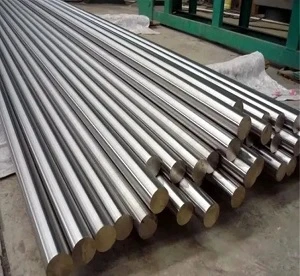

Titanium round rod, titanium disc, titanium wire, titanium ingot
|
|
|
4. Weight calculation formula of titanium beads/balls
Formula: (4 / 3) π R ^ 3 × 4.51/1000000, R is the radius of the sphere
Example: titanium ball 50mm (diameter)
Calculation: (4 / 3) × three point one four × 25^3 × 4.51/1000,000=0.29kg
