Baoji Fairy Titanium Industry Co., Ltd. is one of the leading manufacturers and suppliers of elliptical tank heads in China. Welcome to wholesale bulk high quality customized products made in China here from our factory. Good service and low price are available.
1. Products Introduction

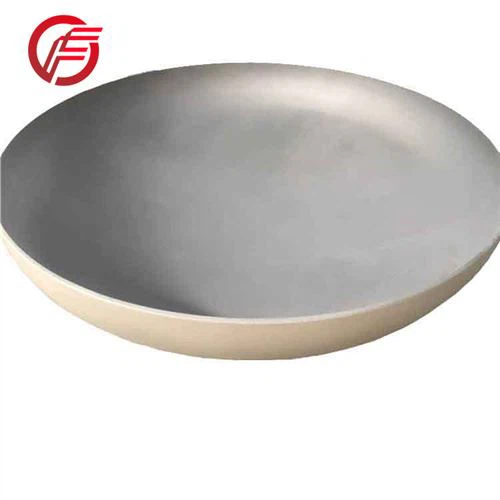

The ellipse head, also known as an elliptical tank head, is a head made up of a rotating elliptical sphere and a cylindrical straight section.
2. Basic information:
ASME tank heads material: Carbon steel, copper, titanium, stainless steel, aluminum, nickel, nickel alloy steel, etc.
3. What is the elliptical tank head's manufacturing process?
Nutrition - physicochemical - finishing - inspection of the finished product - identification of the finished product - blanking - hot forging forming - heat treatment - inspection - packaging typing - shipment.
Detail Shows
4. What is the application of Elliptical tank heads?
Elliptical tank heads are a kind of boiler component in pressure vessels, which are usually used at both ends of the pressure vessel. Another is a product called a welded pipe fitting that is used to plug the end of the pipe. There are many forms of elliptical heads, which are widely used in storage tanks, heat exchangers, towers, reactors, boilers, and separation equipment.
5. What are the maintenance tips of tank heads?
Water used for the hydrostatic test must have a chloride ion content of no more than 25 mg/L and must be dried promptly after the test.
Reducing acids such as hydrochloric acid shall not be used for stainless steel pickling.
Strictly observe the medium compatibility specified in the volume regulations.
Avert collisions and scratches on the stainless steel ellipsoidal head's surface
Avoid coming into direct contact with carbon steel and iron ions.
Avoid forced assembly welding. The structural design shall prevent excessive restraint stress.
After the elliptical head is assembled and welded with the cylinder, the weld, heat-affected zone, and surrounding welding slag, spatter, and pollutants shall be cleaned in time, and Pt inspection shall be carried out.
6. Titanium elliptical tank head manufacturing size (2:1 Elliptical Tank Head)
| Nominal size | Curved surface | Straight height | Thickness | Internal surface area | Volume |
| 300 | 75 | 25 | 3~9 | 0.121 | 0.0053 |
| (350) | 88 | 25 | 3~9 | 0.160 | 0.0081 |
| 400 | 100 | 25 | 39 | 0.204 | 0.0115 |
| 40 | 10~16 | 0.223 | 0.0134 | ||
| (450) | 112 | 25 | 3~9 | 0.254 | 0.0158 |
| 40 | 10~18 | 0.276 | 0.0183 | ||
| 500 | 125 | 25 | 3~9 | 0.309 | 0.0213 |
| 40 | 10~18 | 0.333 | 0.0242 | ||
| 50 | 20 | 0.349 | 0.0262 | ||
| (550) | 137 | 25 | 39 | 0.37 | 0.0277 |
| 40 | 10~18 | 0.396 | 0.0313 | ||
| 50 | 20~22 | 0.413 | 0.0336 | ||
| 600 | 150 | 25 | 3~9 | 0.436 | 0.0352 |
| 40 | 10~18 | 0.464 | 0.0396 | ||
| 50 | 20~24 | 0.483 | 0.0425 | ||
| (650) | 162 | 25 | 3~9 | 0.507 | 0.0442 |
| 40 | 10~18 | 0.538 | 0.0493 | ||
| 50 | 20~24 | 0.558 | 0.0526 | ||
| 700 | 175 | 25 | 3~9 | 0.584 | 0.0545 |
| 40 | 10~18 | 0.617 | 0.0603 |
7. Our advantages
We understand the demands of Elliptical tank head fabrication and are proud to partner with vessel fabrication companies domestically and abroad to help continue the legacy of quality titanium manufacturing in the industry.
