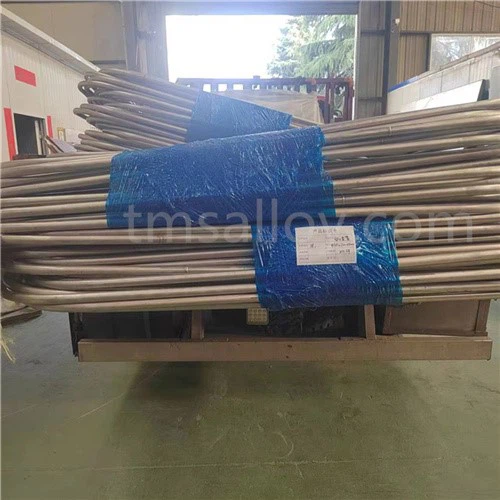

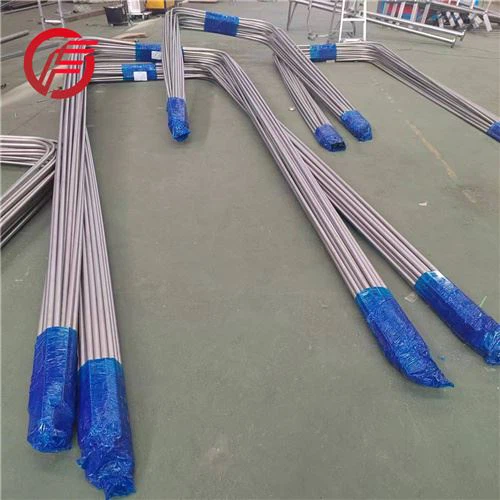

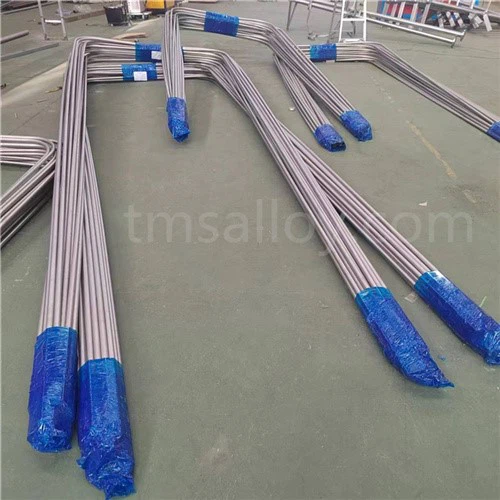

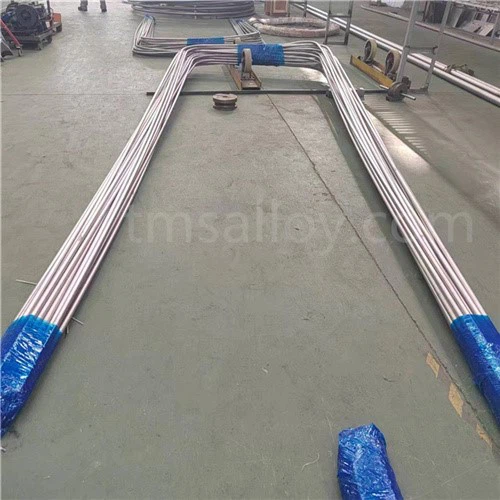

ASTM B338 Gr2 Titanium U-shaped Tube

For the large difference in average wall temperature of the metal in the shell side of the pipeline or the shell side medium is easy to scale and needs to be cleaned, the U-shaped tube heat exchanger is generally used. Especially for the high temperature, high pressure, and highly corrosive materials that are clean and not easy to scale in the tube side, titanium U-shaped heat exchange tubes should be used.

Product features:

1. Low density, high specific strength The density of titanium metal is 4.51g/cm3, which is higher than aluminum but lower than steel, copper, and nickel. Its strength is the largest among metals.

2. In oxygen-containing air or medium, a dense, strongly adherent and inert oxide film is formed on the titanium surface to protect the titanium matrix from corrosion. Titanium is very stable in a variety of media such as oxidizing, neutral and weakly reducing media, and has corrosion resistance. Even due to mechanical wear, it can self-recover or reduce.

Classification of titanium coils: U-shaped, serpentine, spiral, rectangular, round, square, S-shaped, double-layer, U-shaped tube heat exchanger, titanium tube heat exchanger, single-inlet, single-outlet, single-layer, and multi-layer coils are among the various types of titanium coils.

The minimum bending radius of the U-shaped tube is 2d (d is the outer diameter of the heat exchange tube). It is finally determined after communicating with the customer in the early stage to confirm that there is no problem. Because titanium tubes are generally thinner, Article 10.2.6.2 of JB/T4745-2002 stipulates that the wall thickness reduction at the outer arc of the bend should not exceed 17% of the nominal thickness.
The U-shaped tube has a certain amount of resilience. When designing the tube bundle, the tangent distance between the last baffle surface and the straight section of the U-shaped tube is at least 30mm. The U-shaped tube after bending is generally no longer heat treated.

The main function of titanium U-tubes is to serve as efficient and corrosion-resistant heat exchange components, widely used in various industrial equipment to achieve heat exchange between media, especially suitable for stable operation in high temperature, high pressure, and highly corrosive environments.

Core functions and roles:
Efficient heat exchange
The titanium U-shaped tube is the core component of the heat exchanger, and its U-shaped structure design allows the tube bundle to freely expand and contract inside the shell, effectively alleviating thermal stress caused by temperature differences and avoiding equipment deformation or damage. This structure is particularly suitable for working conditions with frequent start stop or large temperature fluctuations, improving equipment safety and service life.

Strong corrosion resistance
Titanium exhibits extremely strong stability in highly corrosive media such as chloride ions, acids, and alkalis, especially in environments such as seawater, salt spray, and wet chlorine gas where pitting or crevice corrosion hardly occurs. Therefore, titanium U-tubes can work stably for a long time in fields such as seawater desalination, chemical engineering, and petrochemicals, significantly reducing maintenance costs.

Lightweight and high-strength, suitable for harsh working conditions
Titanium has low density but high strength, which allows titanium U-tubes to reduce overall equipment weight while ensuring structural strength, making them particularly suitable for weight sensitive mobile or offshore equipment. Meanwhile, its excellent anti fatigue performance ensures reliable operation under high-pressure cycling conditions.

In today's world of online shopping and global commerce, package and delivery have become an integral part of the consumer experience. At our company, we understand the importance of timely and reliable package delivery to ensure customer satisfaction and loyalty.

We take pride in offering fast and efficient package delivery services to our valued customers, both domestically and internationally. We offer a range of shipping options, including express, standard, and economy shipping to accommodate different needs and budgets. No matter which shipping method you choose, we guarantee that your package will arrive on time and in excellent condition.

Other related titanium bolts and titanium nuts.
