Products Introduction
1. Titanium blind flange is a kind of flange cover made of titanium, which has pure titanium and titanium alloy, Gr2 Gr5, etc. It is a flange without a hole in the middle, which is used to seal the pipe plug.
2. Basic information
Standards: ASME/ANSL B 16.5a
Specification: DN10-DN2000
Pressure rating: 0.6MPa ~ 32Mpa, 150Lb ~ 2500lb, PN0.5mpa 25-PN42. 0
Material Grade: 20#, 304, 304L, 316, 316L, Gr2, Gr5 and other materials.
Sealing the surface of titanium blind flange(BL): flat (FF), raised surface (RF), concave-convex surface (MFM), tenon and groove surface (TG), and ring connection surface (RJ).
Production materials: carbon steel, stainless steel, alloy steel, titanium, and titanium alloy.
Detail Show

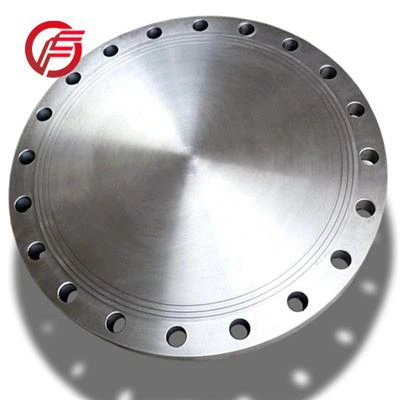

BL titanium flange
titanium flange cover
3. The function of the titanium BL flange is the same as that of welded head and threaded pipe cap, except that the blind flange and threaded pipe cap can be removed at any time, while the welded dish head cannot.
4. Titanium pipe flange applications:
The function of each kind of flange made of different materials is different. Titanium flange has excellent corrosion resistance in many media. Acid and alkali resistance, small service life, high strength, equipment scale, and greatly reduce the fouling coefficient. It is broadly used in electric power, metallurgy, petroleum, chemical industry, chemical fiber, pharmacy, chloralkali, food, vacuum salt making, fine chemical industry, bioengineering, seawater desalination, marine engineering, and other industries.
5. Class 150 Titanium flange dimensions, titanium blind flanges may be made with or without hubs at the manufacturer's option.
| Nominal Pipe Size | Outside Diameter of Flange, O | Thickness of Flange Min. tf |
| 1/2 | 3.50 | 0.38 |
| 3/4 | 3.88 | 0.44 |
| 1 | 4.25 | 0.50 |
| 1 1/4 | 4.62 | 0.56 |
| 1 1/2 | 5.00 | 0.62 |
| 2 | 6.00 | 0.69 |
| 2 1/2 | 7.00 | 0.81 |
| 3 | 7.50 | 0.88 |
| 3 1/2 | 8.50 | 0.88 |
| 4 | 9.00 | 0.88 |
| 5 | 10.00 | 0.88 |
| 6 | 11.00 | 0.94 |
| 8 | 13.50 | 1.06 |
| 10 | 16.00 | 1.12 |
| 12 | 19.00 | 1.19 |
| 14 | 21.00 | 1.31 |
| 16 | 23.50 | 1.38 |
| 18 | 25.00 | 1.50 |
| 20 | 27.50 | 1.62 |
| 24 | 32.00 | 1.81 |
The company has strong technical force, advanced equipment and superb craftsmanship. It is a professional manufacturer of various series ANSI B16.5 Gr 1 Titanium Blind Flange. The product has been proved by users at home and abroad; the equipment is reliable and distinctive, can improve the grade and added value of the product, and has significant economic benefits. Our company adheres to the principle of reputation first, and is willing to seek common development and progress with domestic and foreign enterprises. Our company constantly improves the service quality in the service process and improves the service methods.
